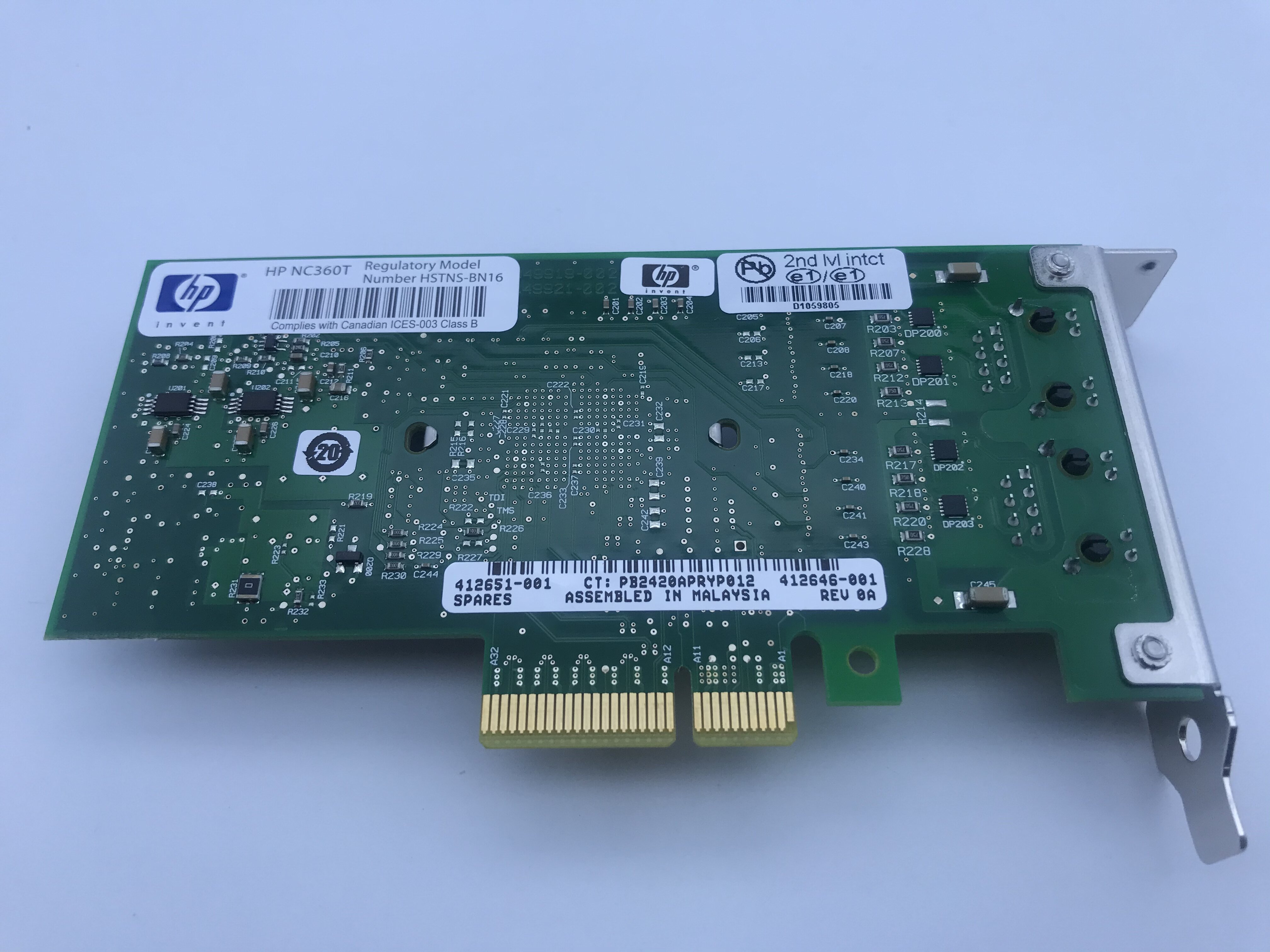

NC360T PCI Express Dual Port Gigabit Server Adapter Network Card
NC360T PCI Dual Port Adapter
The HP NC360T PCI Express Dual Port Gigabit NIC (Network Interface Card) provides a complete end-to-end Gigabit solution for workstation customers who demand the latest in dual port Gigabit Ethernet bandwidth and features.
It offers two ports on a single PCI Express adapter, allowing customers to save valuable I/O slots for other uses. It is based upon the high performance Intel 82571EB chipset and offers a four lane (x4) PCI Express bus.
Key Features
- End-to-end Gigabit solution
- Better network performance by alleviating congestion and removing bottlenecks
- High-performance connectivity solution for your LAN
- Interrupt moderation - significantly reduces CPU utilization and increases throughput
- ACPI, WOL, PXE - allows lower power consumption, remote wake and remote booting
- Auto-negotiation - senses and configures itself to the speed and duplex type of the device to which it is attached.
- Support for ACPI WOL (wake on LAN)
- A large 96Kbyte On-Chip memory
- Jumbo Frames up to 9kb Maximum Transmission Unit (MTU).
- Supports any management application that supports SNMP
- Multiple transmit and receive descriptor queues
- Half and Full Duplex operation
- Data rates of 10/100/1000 Mb/s
- Teaming Modes: Adapter Fault Tolerance, Switch Fault Tolerance, Adaptive Load Balancing, Static Link Aggregation, IEEE
- 802.3ad Dynamic Link Aggregation, Multi-Vendor Teaming
- TCP, UDP and IP checksum offloads
- Bracket LED indicators show link integrity, network activity, and speed on each port for easy troubleshooting.
- Supports cable runs up to 100 meters (328 feet).
Technical Specifications
| Connector | Two RJ-45 |
| Data Rates Supported | 10/100/1000 Mb/s |
| Compliance | 802.3, 802.3u, 802.3x, 802.3ab, 802.3ad, 802.1p, 802.1Q |
| Data Path Width | Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots |
| Data Transfer Mode | Bus-master DMA |
| Power Requirement | 1280 mA @ 3.3V typical |
| Support | Professional x64 Edition. Red Hat Enterprise Linux(RHEL) WS4, 5, 6 Desktop/Workstation Novell SLED 10 & SLED 11 |
| Kit Contents | HP NC360T PCI Express Dual Port Gigabit NIC, low profile bracket, CD containing Intel PROset II NIC drivers, quick install guide, product warranty statement |
FAQ
Q1. Are your network adapter original?
A1.Yes, all our network adapter are guaranteed 100% original!
Q2. What will you do if I found the product has any quality problem?
A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q3. How about the shipment?
A3. We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.
Product Tags:
|
|
Intel HP NC360T PCI Express Dual Port Gigabit Server Adapter Network Card Images
|
